Offline Android tool for trench safety records

Dig the trench the width OSHA already decided.

TrenchSafe finds your legal trench slope, benching, spoil setback, and egress rule, then captures the signed daily inspection for the binder.

Works without signal No account or ads One-time Pro unlock

Geometry plus the signed record

1.5:1

Type C slope, Type B 1:1, Type A 0.75:1, stable rock, PE depth stops, and benching rules are computed from one pure engine.

2 ft

Spoil setback and 25 ft egress checks sit beside the trench cross-section so crews see what to change before entry.

PDF

Save signed daily inspections and export a binder with the diagram, geometry, citations, and competent-person signature.

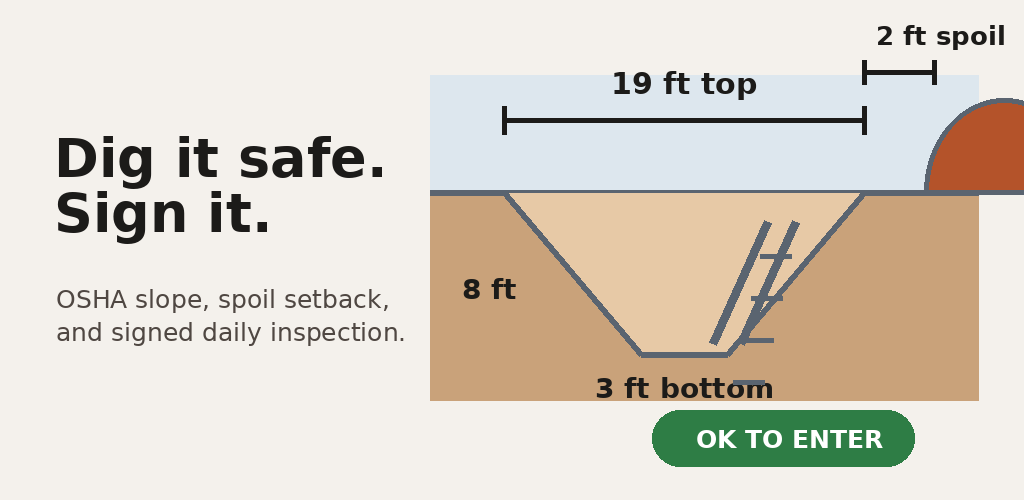

How wide should an 8 ft Type B trench be?

Slope it 1:1, so the top width is your bottom width plus 16 ft.

How far back must the spoil pile sit?

At least 2 feet from the trench edge under 29 CFR 1926.651(j)(2).

When does a trench need a PE?

When sloping or benching exceeds 20 ft deep, a registered professional engineer must design it.

TrenchSafe is an estimate and recordkeeping tool. Verify against current OSHA 29 CFR 1926 Subpart P, engineered designs where required, and your AHJ.
